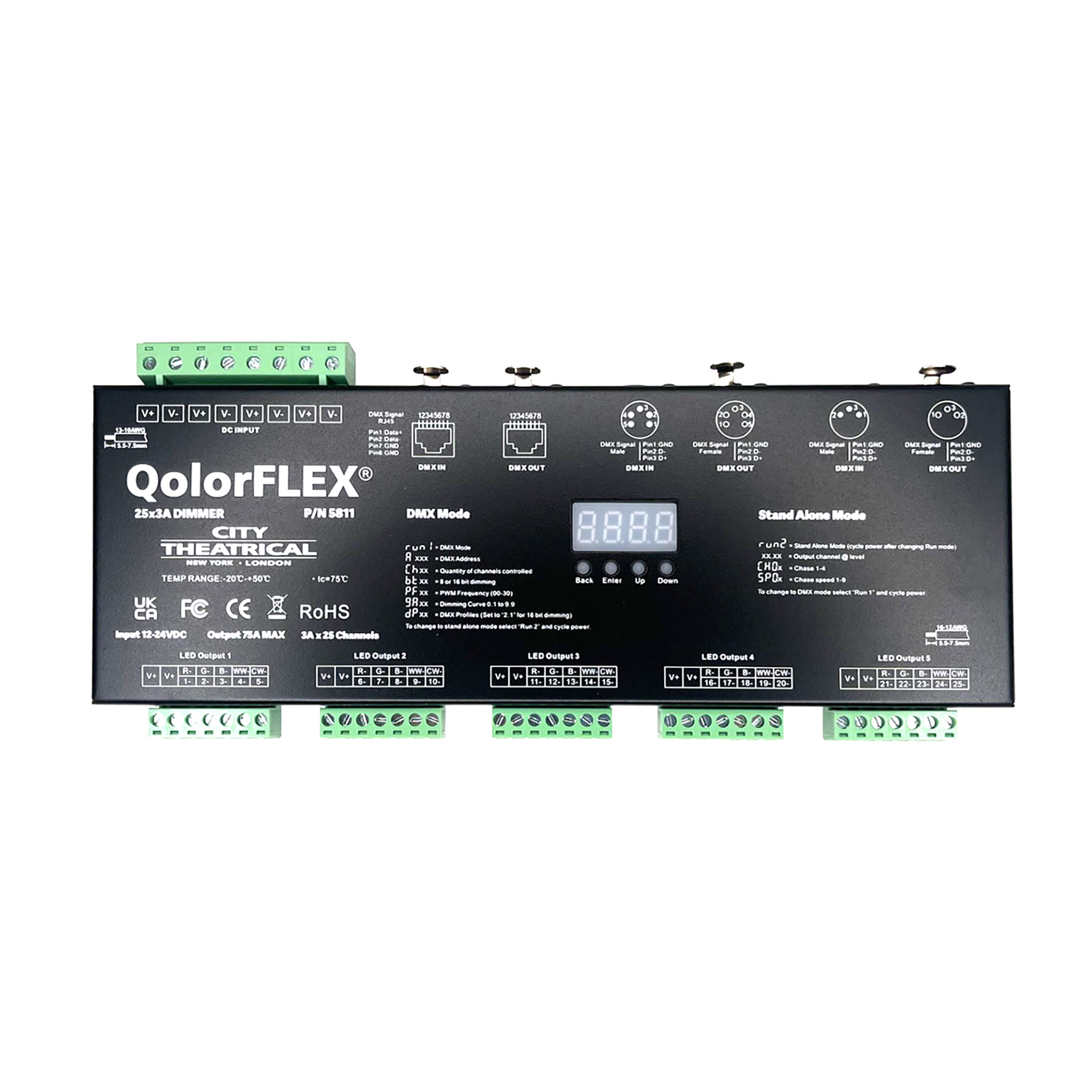

QolorFLEX® 25x3A Dimmer

Part Number(s) 5811, 6617, 6614

City Theatrical's new! QolorFLEX® 25x3A Dimmer (P/N 5811) is a low voltage, constant voltage, dimmer that is designed for large installations of LED tape. It is the five-channel version of City Theatrical’s QolorFLEX 24x3A Dimmer (P/N 5810), for users who seek high-capacity dimmers to use for installations of 5-in-1 LED tapes, rather than four- or fewer channel LED tapes.

The QolorFLEX 25x3A Dimmer features 25 channels of control and can accommodate five-channel LED tapes easily, to create efficiencies when it comes to installation time and wiring. This dimmer is fully DMX and RDM compatible and offers standalone functions. This dimmer’s power connection is one removable Terminal Block Connector, Eight Pin, Male (P/N 6614) for DC Input.

This dimmer was recently updated to now include five removable New! Terminal Block Connectors, Seven Pin, Female (P/N 6617) for LED output connections. The new 6617 seven-pin connectors include five channels and two V+ commons. This change will allow end users to spread the load of multiple LED tapes over the two positive outputs and achieve a maximum current load per channel of 4A. This driver has a Maximum Device Input of 75A.

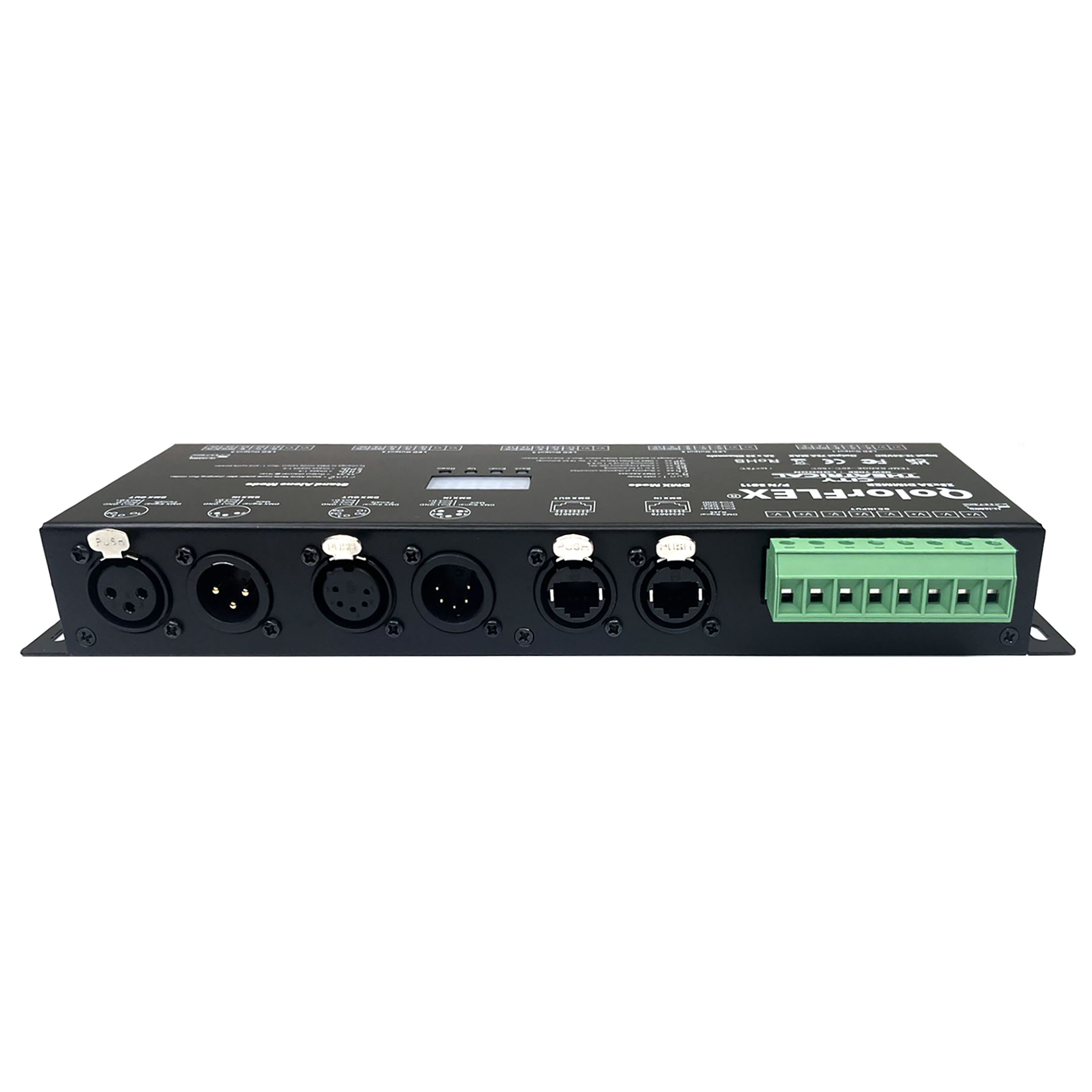

The DMX connections include 5-Pin XLR, 3-Pin XLR, and etherCON RJ45 connectors, which are a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lighting network applications.

The QolorFLEX 25x3A Dimmer also includes 99 curve selection options and 18 film and video modes. This dimmer requires an external power supply to suit the LED tape being used. It is designed for indoor use.

Product image	Part Number	Description

	5811	QolorFLEX 25x3A Dimmer

	6617	New! Terminal Block Connector, Seven Pin, Female (five channels and two V+ commons) (Five removable connectors are included with 5811)

	6614	Terminal Block Connector, Eight Pin, Male (One removable connector included with 5811)

See more QolorFLEX Dimmer Accessories.

Additional Information

Product Name		QolorFLEX® 25x3A Dimmer

Part Number		5811


*Physical Specifications:*

Size L x W x H		260mm x 120mm x 40mm (10.24" x 4.72" x 1.57")

Weight		24 oz (0.07 kg)

Construction		Steel

User Interface		4 recessed buttons, plus alpha/ numeric display


*Electrical* *Specifications*:

Output Channels		25

Input Voltage		12~24VDC

Max Output per Channel		3A

Max Device Input		75A

Power Connections		1 removable Terminal Block Connector, Eight Pin, Male (P/N 6614) for DC Input

Output Connections		5 removable New! Terminal Block Connectors, Seven Pin, Female (P/N 6617) for LED Outputs

DMX Connections		etherCON RJ45 Connectors, 5-Pin XLR, and 3-Pin XLR

0-10 Connections		No

DMX Address		Yes

Curve Selection		Yes - 99

Film & Video Modes		Yes - 18

DMX Termination		No

SHoW ID		N/A

Bump Buttons		No

Pilot Lights		Yes

Smoothing Settings		No

Standalone Levels		Yes

RDM		Yes


*Product Information:*

Use Environment		Indoor

Operating Temperature		-20º to +50º C

Warranty		One year

Compliance		CE, RoHS
